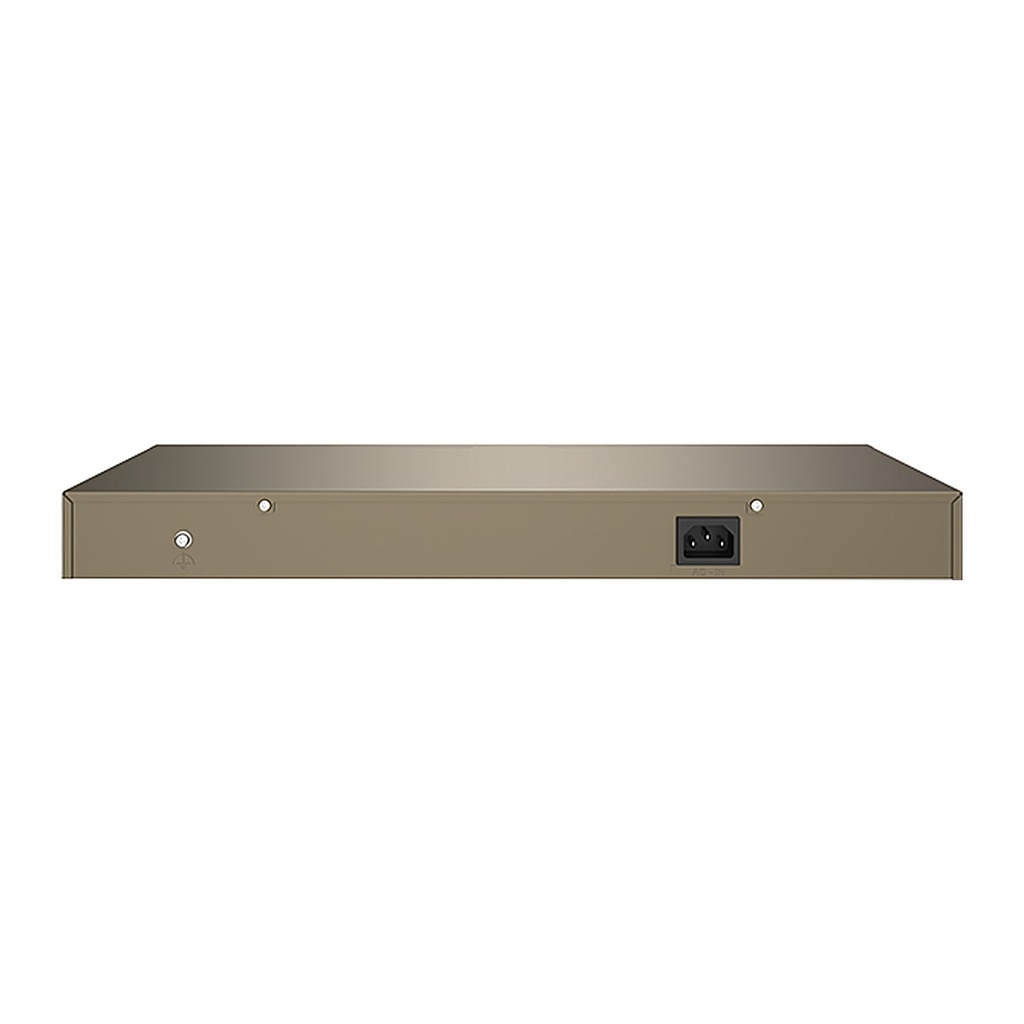

[G5324-16F] IP-COM G5324-16F 24-Port Gigabit L3 Managed Fiber Switch, 16 SFP + 8 GE

IP-COM G5324-16F 24-Port Gigabit L3 Managed Fiber Switch, 16 SFP + 8 GE

8 x Gigabit Ethernet ports + 16 x SFP fiber slots + Console port
Layer 3 features: inter-VLAN routing, IPv4 static routing, DHCP server/relay
336 Gbps switching capacity, 126 Mpps forwarding
STP/RSTP/MSTP, LACP (up to 32 groups) and IGMP Snooping
Security: 802.1x, RADIUS, DoS defense and MAC/IPv4 ACL
CLI, Telnet, SNMP v1/v2/v3, web and IMS cloud management
Rack-mount design with 6 kV lightning protection

IP-COM

Ask on WhatsApp Quote for quantities

Delivery within 2–5 business days across Saudi Arabia
Warranty according to the manufacturer
Tax invoice with every order
Technical support before and after purchase

Not sure this model fits your setup? Read the buying guide

Technical Specifications – G5324-16F

Network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
LED indicators	1 Link/Act LED per port; 1 Power LED per device; 1 SYS LED per device
Fixed ports	8 x 10/100/1000Base-T Ethernet ports; 16 x 1000Base-X SFP slots; 1 x Console port
Lightning protection	Port: 6 kV; Power supply: 6 kV
Forwarding mode	Store-and-forward
Switching capacity	336 Gbps/3.36 Tbps
Packet forwarding rate	126 Mpps
Switching buffer	12 Mbit
MAC address table	16K
Input voltage	220V AC 50Hz
Dimensions (L x W x H)	440 x 179.6 x 44 mm
Environment	Operating temperature: 0°C to 45°C; Storage temperature: -40°C to 70°C; Operating humidity: 10%–90% RH, non-condensing; Storage humidity: 5%–90% RH, non-condensing
Certifications	CCC, FCC, CE, RoHS
Security features	ARP receiving limit; Unknown MAC discarding; DoS attack defense; 802.1x security authentication; RADIUS authentication
VLAN	IEEE 802.1Q VLAN supported; VLAN Layer 3 virtual interfaces supported; Access, Trunk and Hybrid port modes supported
DHCP	DHCP server; DHCP relay; DHCP Snooping; Option 82 policy supported
Layer 3 routing	Inter-VLAN routing; IPv4 static routing; Dynamic and static ARP; ARP aging setting
Port aggregation	Static aggregation; LACP dynamic aggregation; Up to 32 aggregation groups, up to 8 member ports per group
Spanning tree	IEEE 802.1d STP; IEEE 802.1w RSTP; IEEE 802.1s MSTP; Edge ports; BPDU statistics; BPDU Guard; BPDU Filter; Root Guard; Loop Guard; Loopback detection
Multicast	IGMP V1/V2/V3 Snooping; Port fast leave setting
Port mirroring	N:1 port mirroring supported
QoS	SP (Strict Priority); SWRR (Simple Weighted Round Robin); WRR (Weighted Round Robin); 802.1p port trust mode; DSCP port trust mode; Up to 8-queue QoS mapping; Tail Drop; Storm suppression; Port rate limiting
ACL	MAC-based ACL supported; IPv4-based ACL supported
Loading and upgrade	FTP/TFTP/HTTP upgrade supported; Configuration import/export supported
Cloud management	Remote configuration delivery via IMS web cloud platform & IMS app (firmware update); Log reporting and fault detection; Remote maintenance: reboot, backup, upgrade (firmware update)
Local visualization management	LLDP-based discovery and recognition of routers, switches, APs and other network devices; ONVIF-based IP camera discovery and recognition; Automatic topology generation; Local view and main view; Online/offline device detection; Remote camera reboot; Loop alarm; Custom device types and device names
Management and maintenance	CLI configuration; Telnet remote configuration; Console port configuration; SNMP V1/V2/V3; Web management; System log; Log levels; NTP; Ping and Tracert tests; Memory and CPU monitoring

Source: IP-COM official website. Specifications are subject to change by the manufacturer.

PRACTICAL ANSWERS

Network planning questions

Should I choose a router, a switch or an access point?

Start with the task: connecting networks, adding wired device ports, or providing wireless coverage. A single installation may need more than one device type. Share a site diagram and device list so the proposed roles and connections are clear.

Why is wireless coverage weak in some rooms?

Check the access point location, building layout, obstacles and the number of active devices. Measure coverage where people actually work before choosing extra equipment; changing the internet package alone may not address a coverage problem.

How do I select a switch for powered network devices?

List the devices to be connected and check each device’s power requirements against the switch’s per-port capability and total documented power budget. Also review uplink capacity and reserve ports for the expansion you actually expect.

Can the guest network be separated from business devices?

Define which devices and services guests should be able to reach, then check whether the router, switch and access points support the required separation. Test the resulting access rules; a different wireless network name alone is not the acceptance test.

What information helps plan a network upgrade?

Provide floor plans, current equipment models, internet connections, cabling details and peak device counts. Describe the applications that matter most and the observed problem, such as disconnections or slow local file access.

How should network performance be checked after installation?

Agree on the locations and representative workloads to test, then record wired and wireless results separately. Check connectivity, coverage and access rules during normal use, and retain a diagram and configuration backup for support.
