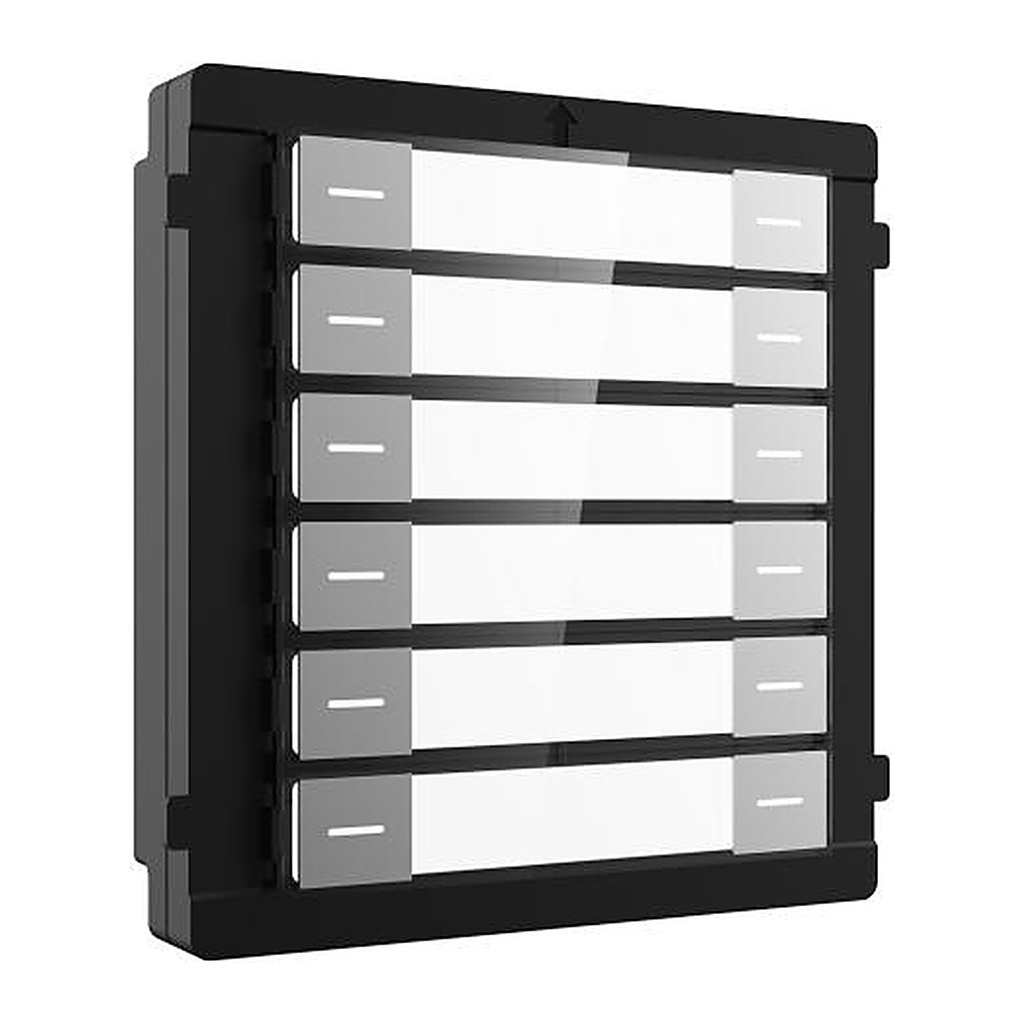

[DS-KD-K12] Hikvision DS-KD-K12 12-Button Nametag Module for KD8 Modular Door Station, IP65

Hikvision DS-KD-K12 12-Button Nametag Module for KD8 Modular

Hikvision DS-KD-K12 12-Button Nametag Module for KD8 Modular Door Station, IP65

Nametag module of modular door station
12 nametag buttons calling design for easier calls
IP65 protection level
Backlight compensation behind the nametag buttons
Easy to use and extend

Weatherproof Video Intercom Door Station Modular

Ask on WhatsApp Quote for quantities

Delivery within 2–5 business days across Saudi Arabia
Warranty according to the manufacturer
Tax invoice with every order
Technical support before and after purchase

Not sure this model fits your setup? Read the buying guide

Documents

Hikvision_DS-KD-K12_Datasheet.pdf

Overview of Hikvision DS-KD-K12

The Hikvision DS-KD-K12 is a nametag module with 12 physical call buttons for the KD8 Series modular door station. Each button can carry a resident or tenant name, allowing visitors to reach the right apartment or office with a single press. Backlit labels improve night-time visibility, and the module links to the main unit via RS-485 with flush or surface mounting. IP65-rated for outdoor entrances, it fits apartment buildings, residential compounds and multi-tenant office buildings in Saudi Arabia.

Technical Specifications – Hikvision DS-KD-K12

System parameters

ROM	/
RAM	/
Processor	Embedded high performance processor

Device interfaces

RS-485	1

General

Button	12 physical buttons
Power Consumption	≤ 2 W
Indicator	/
Weight	Net weight: 179 g; Gross weight: 336.4 g
Protective Level	IP65
Working Temperature	-30 °C to 55 °C
Working Humidity	10% to 90% (no-condensing)
Dimension (W × H × D)	98.2 mm × 100.2 mm × 33.7 mm (3.87" × 3.95" × 1.33")
Installation	Flush mounting, surface mounting

Source: Hikvision official website. Specifications are subject to change by the manufacturer.
