[CS-HP7-R105-1W2TFC] EZVIZ HP7 2K Smart Video Doorphone Kit, 7" Touch Screen, Remote Unlock, 2-Wire (CS-HP7-R105-1W2TFC)

EZVIZ HP7 2K Smart Video Doorphone Kit, 7" Touch Screen, Rem

EZVIZ HP7 2K Smart Video Doorphone Kit, 7" Touch Screen, Remote Unlock, 2-Wire (CS-HP7-R105-1W2TFC)

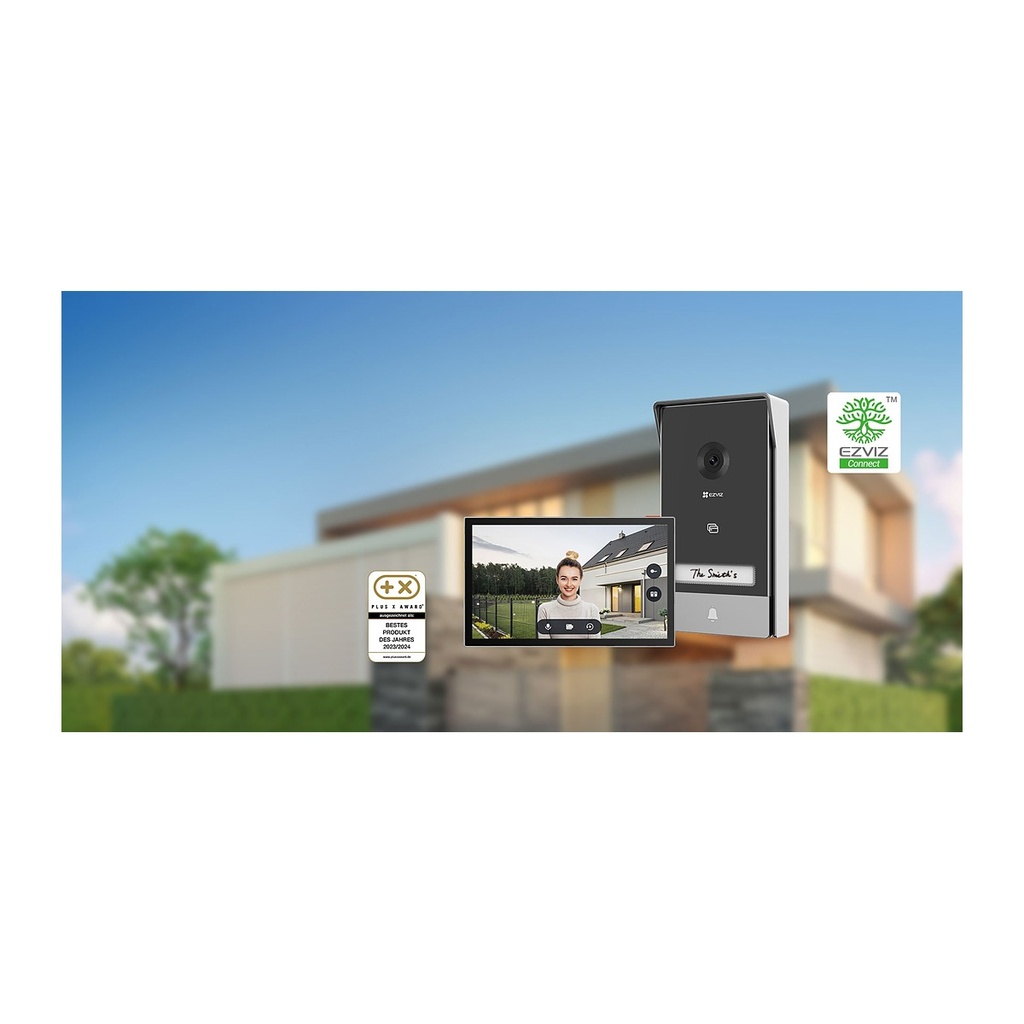

Complete kit: 2K outdoor door station with camera plus a 7-inch color touch-screen indoor monitor
Open your door or gate remotely from the app, the indoor monitor or with RFID tags (3 included)

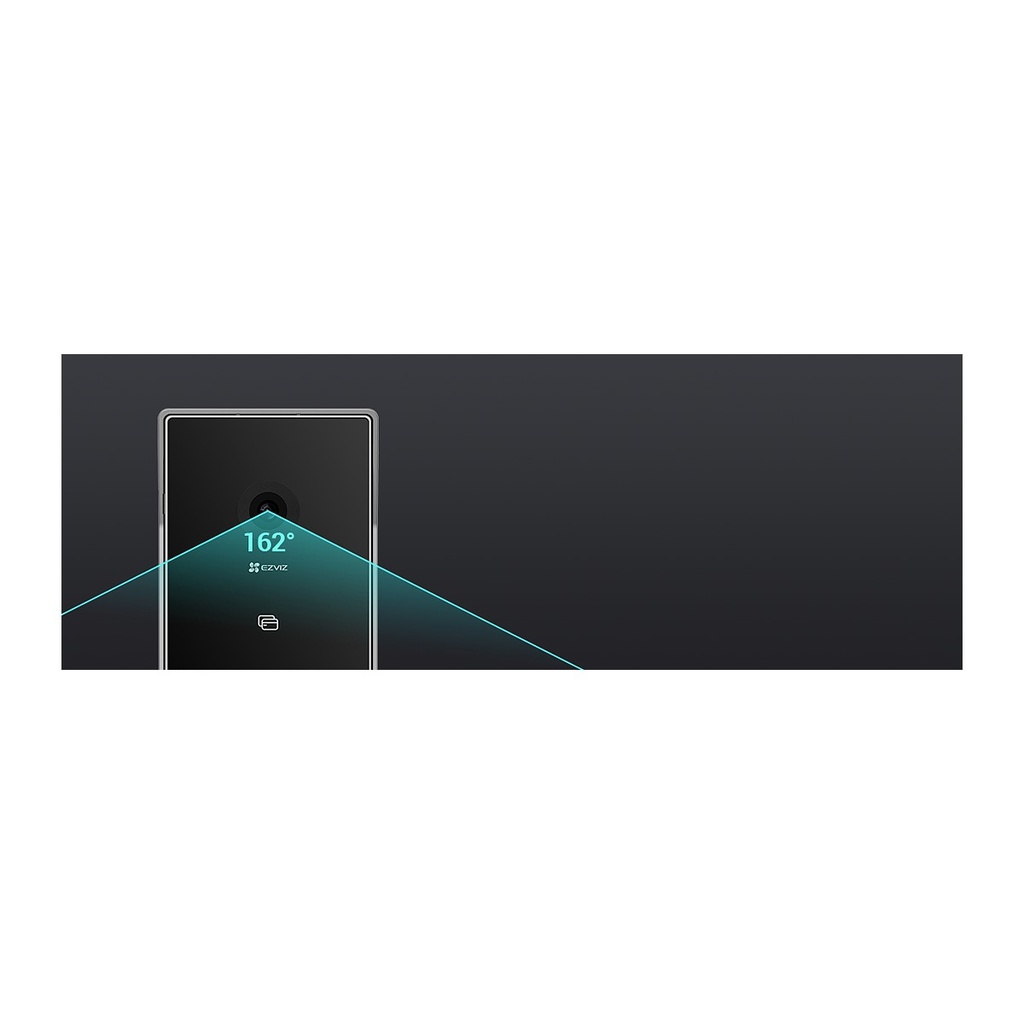

Ultra-wide 162° view to see visitors from head to toe, with IR night vision up to 6 m
Smart human motion detection, lingering detection and tamper alarm with real-time phone alerts
Two-way talk and video calls from anywhere, with a voice changer for privacy
Easy 2-wire installation (also compatible with 4-wire systems) – ideal for replacing old intercoms
Dual-band 2.4 / 5 GHz Wi-Fi with microSD up to 512 GB and EZVIZ CloudPlay storage
Weatherproof door station with shield cover, built-in doorbell and up to 20 ringtones

Wi-Fi Camera Two-Way Audio AI Human Detection 2K Video Doorbell Smart Home

Ask on WhatsApp Quote for quantities

Delivery within 2–5 business days across Saudi Arabia
Warranty according to the manufacturer
Tax invoice with every order
Technical support before and after purchase

Not sure this model fits your setup? Read the buying guide

Overview of EZVIZ HP7 2K Smart Video Doorphone Kit

The EZVIZ HP7 2K is a smart Wi-Fi video doorphone kit that upgrades a traditional intercom into a connected, app-controlled entry system. The weatherproof outdoor station records 2K video with a 162° view, while the 7-inch indoor touch screen lights up whenever a visitor rings. You can talk to guests, unlock the door or gate and receive human detection alerts on your phone, even when you are away. RFID tag access, a privacy voice changer, simple 2-wire installation and microSD storage up to 512 GB make the HP7 ideal for villas, houses, duplexes and renovated homes across Riyadh, Jeddah and Dammam.

Technical Specifications

Image Sensor	1/2.7" Progressive Scan CMOS (Supports low light sensitivity)
Lens	2.0 mm @ F2.2,viewing angle: 162° (Diagonal)
Day & Night	IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)
Max. Resolution	2048 × 1296
DNR	2D / 3D DNR
Video Compression	H.265 / H.264
Frame Rate	Max: 15fps; Self-Adaptive during network transmission
Connection Method	Wired connection (2-Wired, capable with 4-Wired), digital signal transmission
Transmission Distance	Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m
Open the door (Gate)	Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A
Unlock (Electric strike plate)	Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual.
Door Open Methods	1.RFID badge unlock (Badges × 3 pcs) 2.App remote unlock 3.Indoor display unlock
Audio Input	Built-in high-sensitivity microphone
Audio Output	Built-in high-power speaker
Doorbell Button	Yes. The light can be set on or off.
Name Card	Three handwritten name cards in total (one already on the intercom panel). The light can be set on or off.
Terminal	Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate.
Intelligent Alarm	Smart human motion detection, Lingering Detection
Tamper Alarm	Supports
Video Intercom	Long-distance video two-way talk
Operation Conditions	-30°C to 60°C , Humidity 95% or less (non-condensing)
IP Grade	Waterproof, with shield cover
Size	161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inch)
Display size	7” touch screen
Resolution	1024 × 600
Audio Input	Built-in high-sensitivity microphone
Audio Output	Built-in high-power speaker
Button	Screen On / Off Button
Terminal	Two wiring ports to connect 1st outdoor doorbell.
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Protocol	EZVIZ Connect Protocol
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range	2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz
Channel Bandwidth	Supports 20MHz
Security	64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps
Multiple ringtones	Up to 20 ringtones
Functions	Live view, playback, two-way talk, video call
Operation Conditions	-10°C to 45°C, humidity 95% or less (non-condensing)
Weight	Net weight: 855 g (30.16 oz) With package: 1825 g (64.37 oz)
Size	180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)
Power Supply	DC 24V / 1A power supply, adaptor (100- 240Vac)
Power Consumption	8W, Max. 24W
In the box	- Monitor; Wall Bracket for Monitor; Power Adapter for Monitor; Drill Template for Monitor; Intercom Panel; Drill Template for Intercom Panel; Screwdriver; Badges (×3); Screw Kit (×2); Name Card (×2); Wires and Wire Connectors; DC 24V Power Supply Jack Connector Cable; Regulatory Information (×2); Q
Certifications	CE / REACH / WEEE / RoHS

Source: EZVIZ official website. Specifications are subject to change by the manufacturer.
