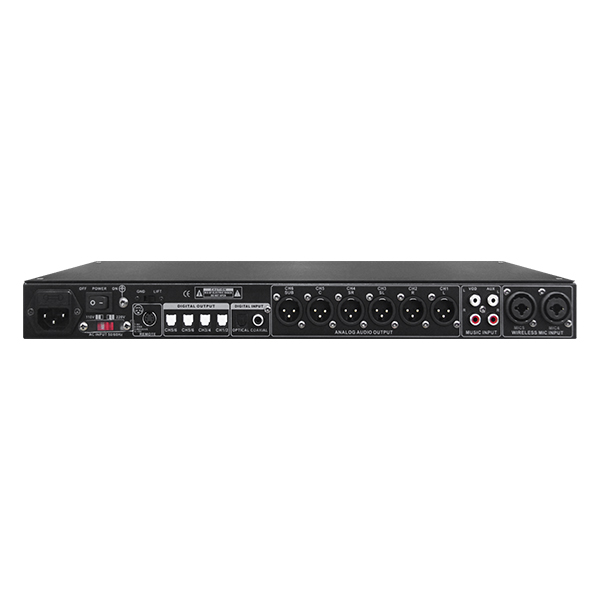

| منافذ قنوات الخرج | 5.1 XLR male (a pair of main channel, a pair of surround, center, sub) and optical fiber output |
|---|
| منافذ قنوات الدخل | 1 in 4 music signal (RCA input, optional fiber input, coaxial input), 5 in three groups mic input hole |
|---|
| معاوقة الدخل | Unbalance: 20KΩ |
|---|
| معاوقة الخرج | Balance: 100Ω |
|---|
| منفذ الكمبيوتر | 1 USB (front panel) |
|---|
| التحكم عن بُعد | S terminal |
|---|
| CMRR | ＞70dB(1KHz) |
|---|
| نطاق الدخل | ≤+5dBu |
|---|
| الاستجابة الترددية | 20Hz-20KHz(-0.5dB) |
|---|
| نسبة الإشارة إلى الضوضاء | ≥95dB@1KHz 0dBu |
|---|
| التشوه التوافقي THD | ＜0.03%OUTPUT=0dBu/1KHz |
|---|
| التداخل بين القنوات | ＞110dB(1KHz) |
|---|
| كتم الدخل | Each channel has independent mute control. |
|---|
| تأخير الدخل | Each input channel has a separate delay control, adjustable range of 0-30ms, less than 10ms, step away from the 0.1ms; greater than 10ms, step away from the 1ms |
|---|
| قطبية الدخل | +/- |
|---|
| اختيار الدخل | MUSIC AUX/VOD/Coaxial/Optical, AUX/VOD can select 0dB or 6dB |
|---|
| EQ الدخل | Set a 9-band EQ for Music and MIC (EQ1 low, EQ9 high, others with PEQ): center frequency: 20Hz-20KHz, bandwidth: 0.01oct-3oct, with a step size of 0.01oct, gain: -30dB-+15dB, with a step size of 0.1dB, default frequency: EQ1 40Hz, EQ2 80Hz, EQ3 160Hz, EQ4 317Hz, EQ5 632Hz, EQ6 1261Hz, EQ7 2515Hz, EQ8 5018Hz, EQ9 10KHz. In addition to the 9-band EQ, additional high-pass and low-pass filters with fixed slopes are added. |
|---|
| مستوى صوت الدخل | Each input volume range: 0-100%, step@1% |
|---|
| المحدِّد (Limiter) | Each input channel has a limiter. Threshold: -30dBu~+20dBu step: 0.1dBu |
|---|
| منع الصفير (Feedback) | 4 level |
|---|
| كتم الخرج | Each channel has independent mute control. |
|---|
| قطبية الخرج | In-phase (+/+) or reversed phase (+/-) |
|---|
| EQ الخرج | Set a 7-band EQ for each output channel (low, high, PEQ): center frequency: 20Hz-20KHz, bandwidth: 0.01oct-3oct, with a step size of 0.01oct, gain: -30dB-+15dB, with a step size of 0.1dB, default frequency: EQ1 47Hz, EQ2 112Hz, EQ3 266Hz, EQ4 631Hz, EQ5 1495Hz, EQ6 3544Hz, EQ7 8399Hz. |
|---|
| كسب الخرج | Each output volume range: 0-100%, step@1% |
|---|
| تأخير الخرج | Each output channel has a separate delay control, adjustable range of 0-60ms, less than 10ms, step away from the 0.1ms; greater than 10ms, step away from the 1ms |
|---|
| X-OVER | Each output channel can be independently set as LPF or HPF. These parameters can be adjusted. Filter type: Linkwitz-Riley; Bessel; Butterworth. The crossover frequency: 20Hz~20KHz, slope: 12db/oct; 18db/oct; 24db/oct; 30db/oct; 36db/oct; 42db/oct; 48db/oct. |
|---|
| المحدِّد (Limiter) | Each output channel has a limiter, threshold: -30dBu~+20dBu step: 0.1dBu |
|---|
| المؤثرات | 3 band of EQ, HC/LC, effect ratio can be adjusted |
|---|
| المعالج | 96KHz sampling frequency, 32-bit floating-point DSP, 24-bit A/D and D/A conversion |
|---|
| الشاشة | The distinguishing rate for 144*32 characters LCD screen |
|---|
| القدرة | ≤30W |
|---|
| مصدر الطاقة | AC110V/220V 50/60Hz |
|---|
| أبعاد المنتج (ع×ع×ا) | 482×228×44mm |
|---|
| الوزن الصافي | 4.5kg |
|---|
| أبعاد الشحن (ع×ع×ا) | 1PC: 555×325×98mm/0.0177m³ 6PCS: 573×337×615mm/0.1188m³ |
|---|
| الوزن الإجمالي | 1PC: 5(kg) 6PCS: 31.5(kg) |
|---|
